STNY-106 Pesticide Boiling Point Meter Pharmaceutical Testing Instruments

STNY-106 Pesticide Boiling Point Meter High-Performance and Testing for Pesticide Properties Pharmaceutical Testing Instruments

The STNY-106 pesticide boiling point meter is designed and manufactured strictly in accordance with the testing guidelines for the physical and chemical properties of pesticides in NY/T1860.19, Part 19: Boiling point determination method. It uses a digital tube display and a single-chip microcomputer digital precision pressure regulating electric heater. Due to the use of precision digital pressure regulation, the electric heater has the characteristics of fine pressure regulation, stable heating, and stable temperature rise.

Boiling point: The principle of this method is that as the temperature of the liquid rises, its vapor pressure also increases. When the vapor pressure of the liquid is equal to atmospheric pressure, boiling begins. Under standard conditions (1013.25 hPa, 0 ℃), the boiling temperature of the liquid is the boiling point of the liquid.

Technical parameters:

• Working power supply: AC 220V ± 10%, 50Hz.
• Electric furnace heating power: 1000W.
• Environmental temperature: ≤ 35 ℃.
• Relative humidity: ≤ 85%.
• Power consumption of the entire machine: not more than 1100W.
• Heating range: room temperature to 300 ℃
• Instrument size: 320 x 290 x 360mm
• Instrument Weight: 15kg
• Packaging size: 450 x 390 x 420mm
• Packaging Weight: 18kg

Customer provided: atmospheric pressure gauge

Packing list

STNY-106 Pharmaceutical Testing Instruments

220V Pharmaceutical Testing Instruments

Pesticide Boiling Point Meter

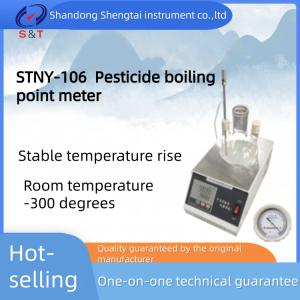

STNY-106 Pesticide Boiling Point Meter Pharmaceutical Testing Instruments Images
